Fanvil H2U-V2 Black Hotel Phone
Frequently Asked Questions
First, check that the network cable is securely connected and that the phone has link activity lights. Then verify that the SIP server address, port, username, and password in the phone's web interface exactly match the credentials your provider gave you. If the issue persists, a Toronto-based VoIP support provider can usually resolve this remotely.
The phone can be powered using a 5V DC power adapter (not included) that plugs into the marked port on the back. If your network switch supports PoE, you can use a standard Ethernet cable and no adapter is needed.
Start by reseating the Ethernet cable at both ends to rule out a loose connection. If the phone is on a long cable run, try a shorter or higher-quality Cat5e or Cat6 cable. Next, reduce the audio codec in the phone's settings to G.711 if you have a slow internet connection, as higher-bandwidth codecs like Opus can cause dropouts on marginal links.
Access the phone's web interface through your browser using the phone's IP address. Navigate to the DSS Key or Speed Dial section, choose a key number, and enter the desired extension or phone number. Save and reboot the phone to apply the changes.
No, the Fanvil H2U-V2 is a VoIP phone and works only with SIP-based telephone systems or providers. It cannot connect directly to a traditional analog copper line unless you use an ATA (analog telephone adapter) between the line and the phone, though this is not a typical setup and may limit features.
This usually means the phone is registered to your PBX or provider but the account doesn't have permission to dial out, or the dial plan is incorrectly configured. First, try calling your own mobile number to see if the call connects. If not, log into the phone's web interface and check that the dial plan (usually under Advanced > Dial Plan) is not blocking calls. Contact your VoIP provider to confirm your account's outbound calling permissions.
Locate the small reset pinhole on the back or bottom of the phone. With the phone powered on, press and hold it with a paperclip for about 10 seconds until the phone reboots. This will erase all settings and return the phone to factory defaults, which can help if you are locked out.
This indicates the phone could not connect to the SIP server. Start by confirming that the network cable is plugged in and the phone has obtained an IP address (check through the phone's menu under Status > Network). Then verify that your SIP account credentials are correct. If you are on a corporate network, check that the required SIP ports (usually 5060 or 5061 for TLS) are not blocked by a firewall.
Yes, the phone can be wall-mounted. The package includes a mounting bracket and screws, though you may need additional wall anchors for drywall or concrete. The phone's base has slots that snap onto the bracket, and the handset cradle can be rotated to hold the handset securely when mounted vertically.
This is likely a Session Timer or SIP timeout issue configured by your PBX or provider. Some services set a call duration limit to manage network resources. Check with your VoIP provider to see if they enforce a timer, and ask if they can adjust it to meet your needs. The phone itself does not have a timeout setting that causes this behavior.
IP Phones

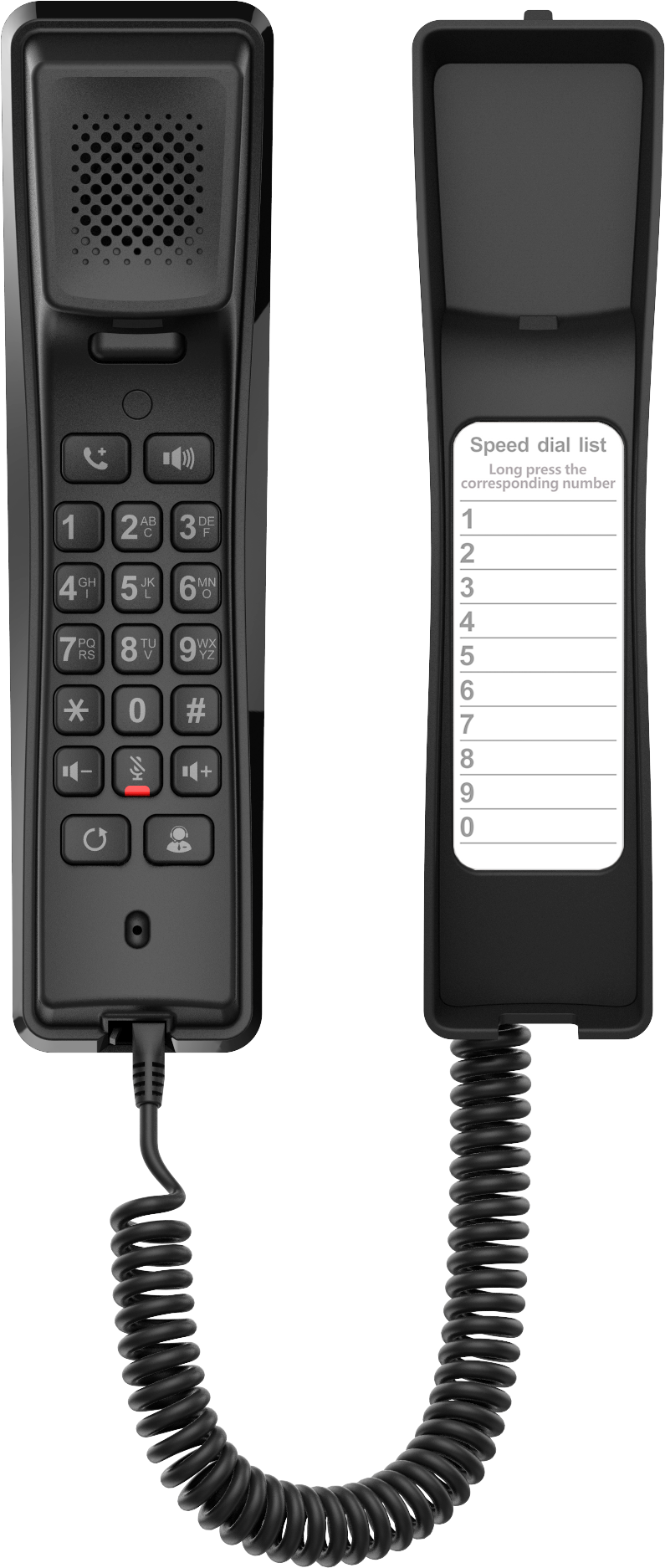

Fanvil H2U-V2 Black Hotel Phone
The Fanvil H2U-V2 Hotel phone is a compact and lightweight device that can be wall mounted or used on a desktop. It features HD Voice with Opus for stable and clear audio even in loud environments. Key Features: • 2 SIP Lines • HD Audio with wideband Codec: G.722, Opus • 10 speed dial keys, 1 programmable DSS Key • 3-way Conference • Desk/wall-mounted mode • Handset / Hands-free mode • 10/100 Mbps • PoE/Power adaptor This phone can serve as a hotspot, allowing multiple extension phones to share one number from the server. Calls will ring together when a call comes in, making it easy to answer calls from any location.
About This Product
The Fanvil H2U-V2 is a purpose-built hotel phone designed for front desks, guest rooms, and hospitality environments where simplicity and reliability matter more than feature depth. Its compact, wall-mountable form factor makes it a natural fit for bedside tables or service counters where space is tight, and the 10 speed-dial keys allow for quick access to frequently called extensions or front desk numbers without navigating menus.
This phone pairs well with an existing IP PBX or hosted VoIP service that supports SIP trunking. For a small Toronto boutique hotel or a GTA motel, the H2U-V2 can serve as a cost-effective replacement for older analog hotel phones, provided the network has PoE switches or compatible power adapters. Note that the 10/100 Mbps Ethernet port is adequate for voice traffic but will bottleneck any device daisy-chained through its PC port if that device expects gigabit speeds.
The H2U-V2 is overkill for a single-user home office where a basic one-line IP phone would suffice, and it is likely underpowered in a large enterprise call center that requires extensive programmable keys, headset support, or advanced call handling features. Its 2 SIP line limit and modest DSS key count make it best suited to environments where each user has a simple call flow.
A practical tradeoff: while the phone describes itself as a "hotspot" for multi-phone ringing, this feature is really a shared-line appearance that makes all phones ring simultaneously. This is excellent for a lobby or help desk where anyone can pick up, but less useful if each extension needs its own private line. Make sure your SIP server or service provider supports shared-line appearances before relying on this feature.
This phone pairs well with an existing IP PBX or hosted VoIP service that supports SIP trunking. For a small Toronto boutique hotel or a GTA motel, the H2U-V2 can serve as a cost-effective replacement for older analog hotel phones, provided the network has PoE switches or compatible power adapters. Note that the 10/100 Mbps Ethernet port is adequate for voice traffic but will bottleneck any device daisy-chained through its PC port if that device expects gigabit speeds.
The H2U-V2 is overkill for a single-user home office where a basic one-line IP phone would suffice, and it is likely underpowered in a large enterprise call center that requires extensive programmable keys, headset support, or advanced call handling features. Its 2 SIP line limit and modest DSS key count make it best suited to environments where each user has a simple call flow.
A practical tradeoff: while the phone describes itself as a "hotspot" for multi-phone ringing, this feature is really a shared-line appearance that makes all phones ring simultaneously. This is excellent for a lobby or help desk where anyone can pick up, but less useful if each extension needs its own private line. Make sure your SIP server or service provider supports shared-line appearances before relying on this feature.
