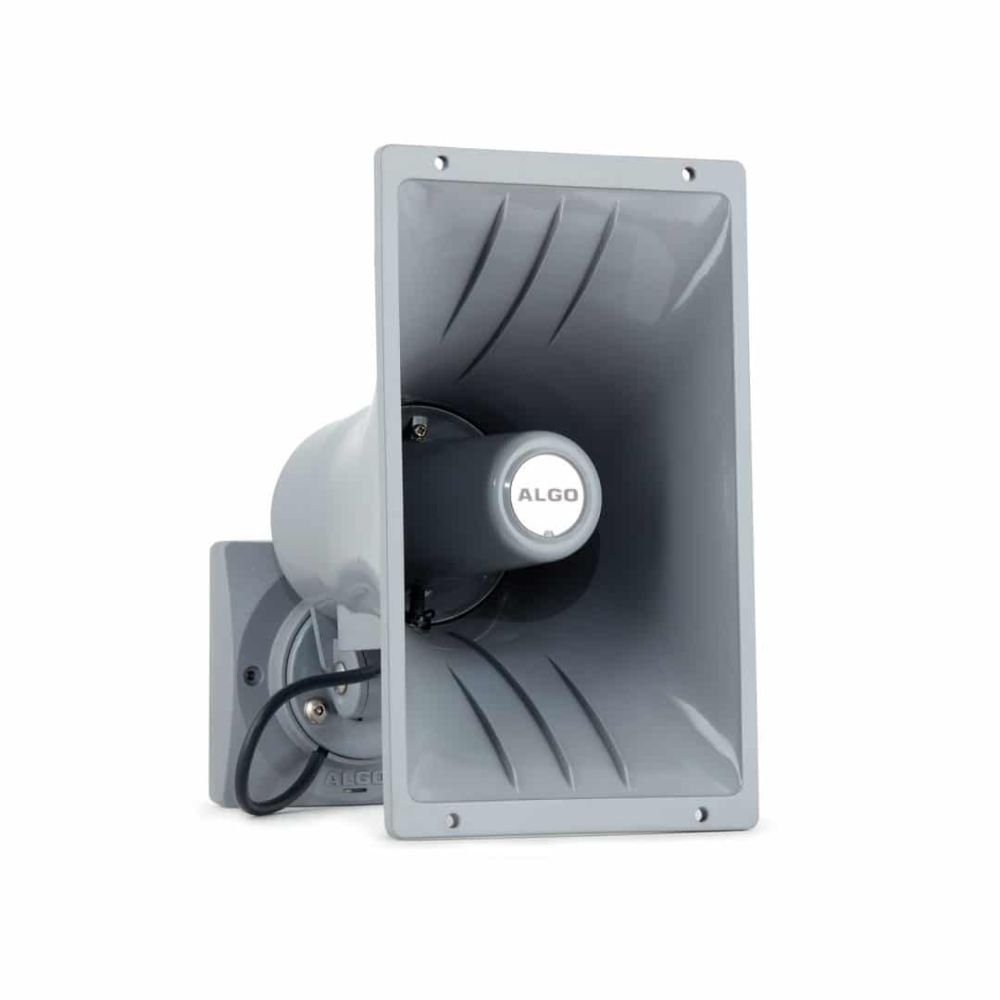

Algo 1196 Satellite Horn Speaker
Frequently Asked Questions
Connect a standard RJ45 Ethernet cable from the 'Satellite Out' port on the Algo 8196 to the 'Satellite In' port on the Algo 1196. The cable can be up to 50 feet long. The satellite will receive both power and audio over this single cable, so no separate network connection or power source is needed.
First, check that the main Algo 8196 speaker is powered on and playing audio. Then verify the RJ45 cable connecting the satellite is fully seated at both ends and not damaged. If the cable is good, ensure the satellite is within 50 feet of the main unit. If the issue persists, a Toronto-based VoIP support provider can usually resolve this remotely.
No, the Algo 1196 Satellite Horn Speaker is not a standalone device. It requires an Algo 8196 IP PoE+ Horn Speaker to provide both power and audio. It cannot be connected directly to a network switch or PoE injector.
You can connect up to three Algo 1196 Satellite Horn Speakers to a single Algo 8196 main unit. They are connected in a daisy-chain topology, with each satellite linking to the next via an RJ45 cable.
Check the audio source and ensure the volume on the main Algo 8196 is not set too high, as distortion can occur if the signal is overdriven. Also verify that the total power draw of all connected satellites does not exceed the PoE+ budget of the switch powering the main unit. A power-starved system can cause audio issues.
The Algo 1196 itself does not connect to a PoE switch; it receives power from the Algo 8196 main unit. However, the main unit requires PoE+ (802.3at) from a switch or injector. Ensure your switch provides PoE+ on the port connected to the 8196, and that the total power budget is sufficient for the main unit plus up to three satellites.
The maximum recommended cable length between the Algo 8196 and the first Algo 1196 satellite, or between satellites in a daisy chain, is 50 feet (approximately 15 meters). Using longer cables may cause power loss or signal degradation.
The Algo 1196 satellite does not have its own IP address or web interface. All configuration, including paging settings and SIP registration, is done on the main Algo 8196 speaker. The satellite simply extends the audio output of the main unit.
The Algo 1196 is designed specifically for use with the Algo 8196. While other satellite models may exist, for reliable operation and power sharing, only the Algo 1196 should be used with the 8196. Check the product documentation for compatible accessories.
Intermittent connection loss is often due to a loose or damaged RJ45 cable. Try reseating the cable at both ends and, if possible, test with a known-good cable. Also verify that the cable run is within the 50-foot limit. If the problem continues, inspect the Ethernet ports for damage or debris.
IP Paging
Algo 1196 Satellite Horn Speaker
• Up to three Algo 1196 Satellite Horn Speakers can be connected to one Algo 8196 IP PoE+ Horn Speaker, each connected via a standard RJ45 cable up to 50 ft. The speaker system shares power equally between IP speakers and connected satellite speakers. The Algo Satellite Speaker system offers cost-effectiveness by reducing project costs due to lower material and labor requirements. Installation is easy via daisy chain connection with flexible deployment to meet specific project needs. Key features: • Can be used as a standalone solution or connected in groups • Supports up to three satellites per main unit • Offers PoE+ power sharing between IP speakers and satellite speakers • Reduces project costs due to lower material and labor requirements • Easy installation via daisy chain connection For detailed specifications, please refer to the product datasheet.
About This Product
The Algo 1196 Satellite Horn Speaker is an accessory designed specifically for use with the Algo 8196 IP PoE+ Horn Speaker, extending audio coverage in larger or multi-zone environments. It is ideal for warehouses, manufacturing floors, school campuses, or retail spaces where a single horn speaker cannot adequately cover all areas. The satellite connects via a standard RJ45 cable up to 50 feet from the main unit, and up to three satellites can be daisy-chained to a single 8196, sharing the PoE+ power budget across all connected speakers. This setup reduces material and labor costs compared to running separate network drops for each speaker, making it a practical choice for cost-conscious deployments. However, because the satellite relies entirely on the main unit for power and audio, it is not a standalone device; if the main unit loses network connectivity or power, all attached satellites will also go silent. This system is well-suited for medium-sized facilities in the GTA where centralized paging is needed but full IP drops at every speaker location are impractical. For very large or distributed deployments, or where independent power and network redundancy are required, multiple 8196 units with their own satellites may be a better fit.
