Fanvil i57A SIP Indoor Station
Frequently Asked Questions
First, confirm the i57A has a valid IP address on your network and can reach the SIP server. Check that the server address, SIP port, and extension credentials entered in the device’s account settings match exactly what your phone system expects. A common cause is a typo in the authentication password or an incorrect transport protocol (UDP/TCP/TLS); verify these against a working desk phone on the same system. If the issue persists, a Toronto-based VoIP support provider can usually resolve this remotely.
Start by checking that the H.264 video codec is enabled and that the video stream is configured to a resolution both devices support, starting with 1080P. Ensure the outdoor station and the i57A are on the same VLAN or that multicast routing is correctly set up if they are on different subnets, as video packets often get blocked by inter-VLAN firewall rules. A simple test is to temporarily place both devices on the same unmanaged switch to rule out network configuration issues.
The i57A is powered exclusively by PoE, so first verify the Ethernet cable is securely clicked into the device’s LAN port and the PoE switch or injector is supplying sufficient power. Try a known-working PoE port and a different Ethernet cable to rule out a faulty cable or switch port. If the screen remains off, the device may not be receiving power at all, which is a hardware or power-source issue best addressed by testing with a standalone PoE injector.
The i57A has two embedded relay outputs designed for this purpose. Wire the lock’s power supply through one of the relay terminals, observing the relay’s voltage and current rating to avoid damage. You will then configure the relay action in the device’s settings to trigger on a door-open command, typically linking it to the on-screen unlock button. Always test with the door propped open to prevent a lockout during setup.
The device has a built-in Acoustic Echo Canceller, but echo can still occur if the speaker volume is set too high or if the microphone is obstructed. Lower the speaker volume to about 70% and ensure the device’s microphone opening is not blocked by mounting hardware or dirt. If the problem occurs only with certain outdoor stations, try reducing the microphone sensitivity or enabling voice activity detection on that remote unit.
Yes, the i57A supports 2.4GHz and 5GHz Wi-Fi connectivity. While Wi-Fi is supported, PoE over a wired Ethernet connection is strongly recommended for reliability, as video and door-release commands demand a stable, low-latency link. If you must use Wi-Fi, place the access point close to the device and ensure the SSID uses WPA2-AES security for best compatibility.
Access the device’s settings menu through the touch screen, navigate to the account or phonebook section, and manually enter the SIP server details and extension information. Alternatively, if your VoIP platform supports remote provisioning, you can push the account settings to the i57A using a configuration file or management system, which is preferred for multi-unit deployments. The Android 9.0 OS also allows you to install a compatible softphone app if you need more flexible account handling.
Intermittent relay operation often points to a loose wire connection at the relay terminals. Inspect the wiring to the lock and tighten the terminal screws. Also, check the relay’s configuration in the i57A’s settings to ensure the trigger duration is set long enough for the lock to release reliably; a duration that is too short may not fully disengage the lock.
Door Phones

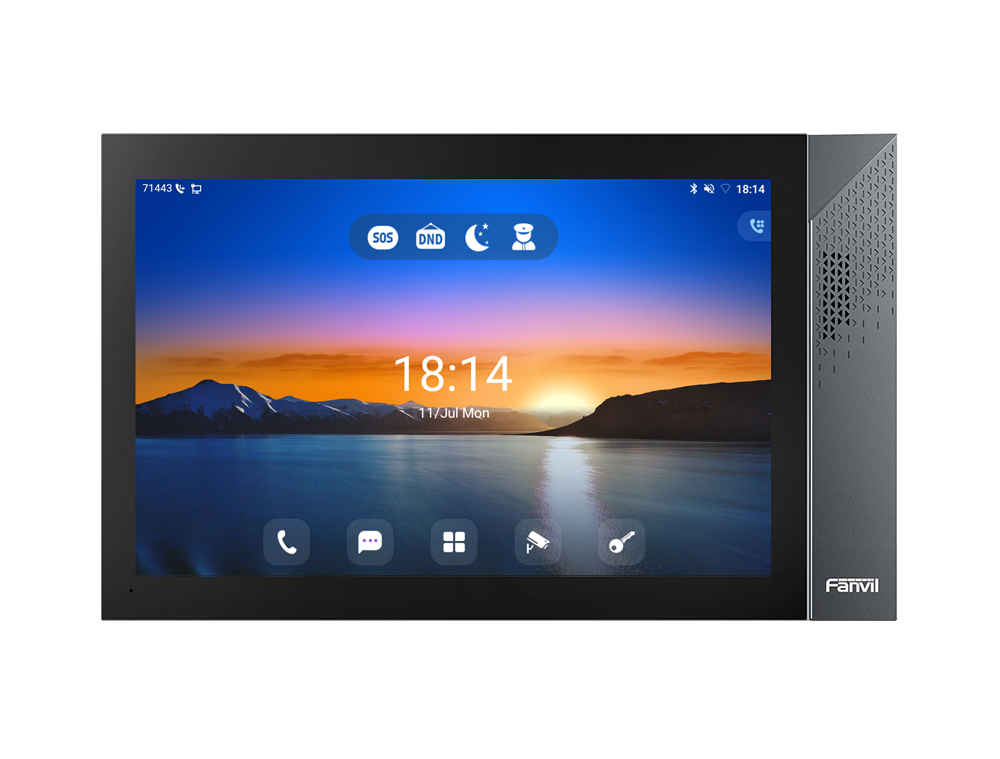

Fanvil i57A SIP Indoor Station
• The i57A is a comprehensive management assistant for communities, villas, and office buildings, featuring powerful functionalities such as remote door opening and real-time monitoring for security devices. • Key features: • 10.1-inch (1280×800) capacitive color touch screen • Android 9.0 operating system with customization options • Aluminum panel design for reliability and durability • Built-in cool lighting effects as status indicators • Real-time video monitoring with H.264 video codec and 1080P high resolution • HD voice speech quality with built-in 2W speaker and Acoustic Echo Canceller • Bluetooth 5.0 and 2.4GHz/5G WiFi connectivity • Support for RS-485, 8 alarm input interfaces, and 2 embedded relays • Integrated Micro USB interface and maximum 256GB capacity TF card slot • PoE support for wall-mounted installation • For a full list of specifications, please refer to the product datasheet available on our website.
About This Product
The Fanvil i57A is an indoor monitoring and access control station built for managed residential and commercial properties where a front-desk equivalent function is needed. It fits communities, mid-size office floors, and villa estates where staff or residents need to see and speak with a visitor at the door, then grant access remotely. The large touch screen and Android operating system mean it can run custom property-management or security apps directly, which matters if you want a unified interface instead of a separate panel plus a phone.
In a practical deployment, this device pairs with a compatible outdoor door station and sits on the building’s internal network. It is not a simple plug-and-play intercom; it expects a structured IP network with PoE, proper VLAN segmentation for security traffic, and someone who can configure the alarm inputs and relay outputs. For a single-family home it is overspecified, and a simpler indoor monitor would save cost. For a high-traffic office lobby where the screen is touched by dozens of people per hour, the aluminum build holds up better than an all-plastic panel.
From a Canadian business perspective, the i57A works with any SIP-based VoIP platform, including 3CX and FreePBX systems commonly used in the GTA. The Wi-Fi and Bluetooth radios are compliant with North American standards, so no regional compatibility concerns. The onboard relay support means it can directly trigger a magnetic lock or gate controller without an external adapter, which simplifies wiring during installation.
Keep in mind this is a wall-mounted, PoE-powered indoor station; it is not weather-sealed and cannot be placed outside. The Android 9.0 OS, while stable, limits the app versions you can run compared to more recent Android releases. This is a specialized appliance, not a general-purpose tablet, and while it is customizable, you are working within Fanvil’s firmware ecosystem. For a condominium or office that needs a durable, centrally managed answer-and-release station with video, it is purpose-built for exactly that role.
In a practical deployment, this device pairs with a compatible outdoor door station and sits on the building’s internal network. It is not a simple plug-and-play intercom; it expects a structured IP network with PoE, proper VLAN segmentation for security traffic, and someone who can configure the alarm inputs and relay outputs. For a single-family home it is overspecified, and a simpler indoor monitor would save cost. For a high-traffic office lobby where the screen is touched by dozens of people per hour, the aluminum build holds up better than an all-plastic panel.
From a Canadian business perspective, the i57A works with any SIP-based VoIP platform, including 3CX and FreePBX systems commonly used in the GTA. The Wi-Fi and Bluetooth radios are compliant with North American standards, so no regional compatibility concerns. The onboard relay support means it can directly trigger a magnetic lock or gate controller without an external adapter, which simplifies wiring during installation.
Keep in mind this is a wall-mounted, PoE-powered indoor station; it is not weather-sealed and cannot be placed outside. The Android 9.0 OS, while stable, limits the app versions you can run compared to more recent Android releases. This is a specialized appliance, not a general-purpose tablet, and while it is customizable, you are working within Fanvil’s firmware ecosystem. For a condominium or office that needs a durable, centrally managed answer-and-release station with video, it is purpose-built for exactly that role.
